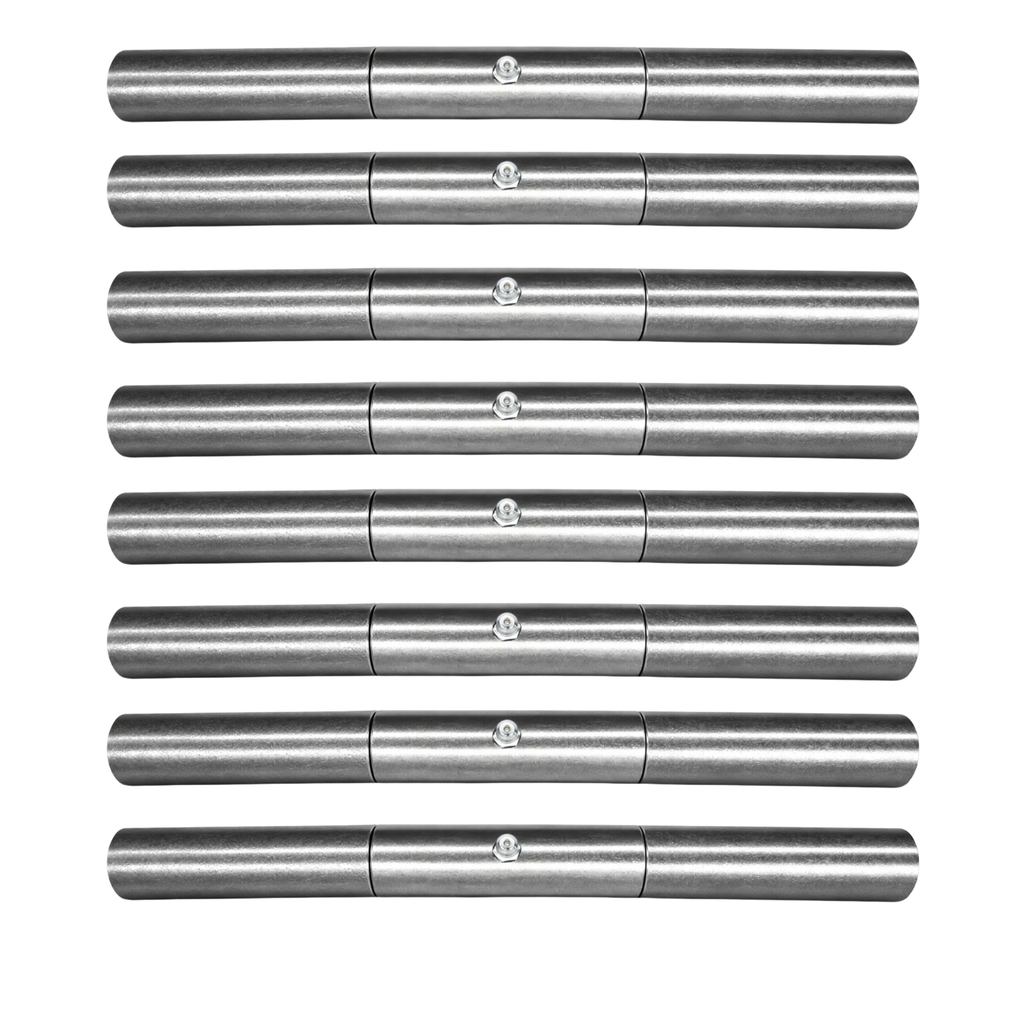

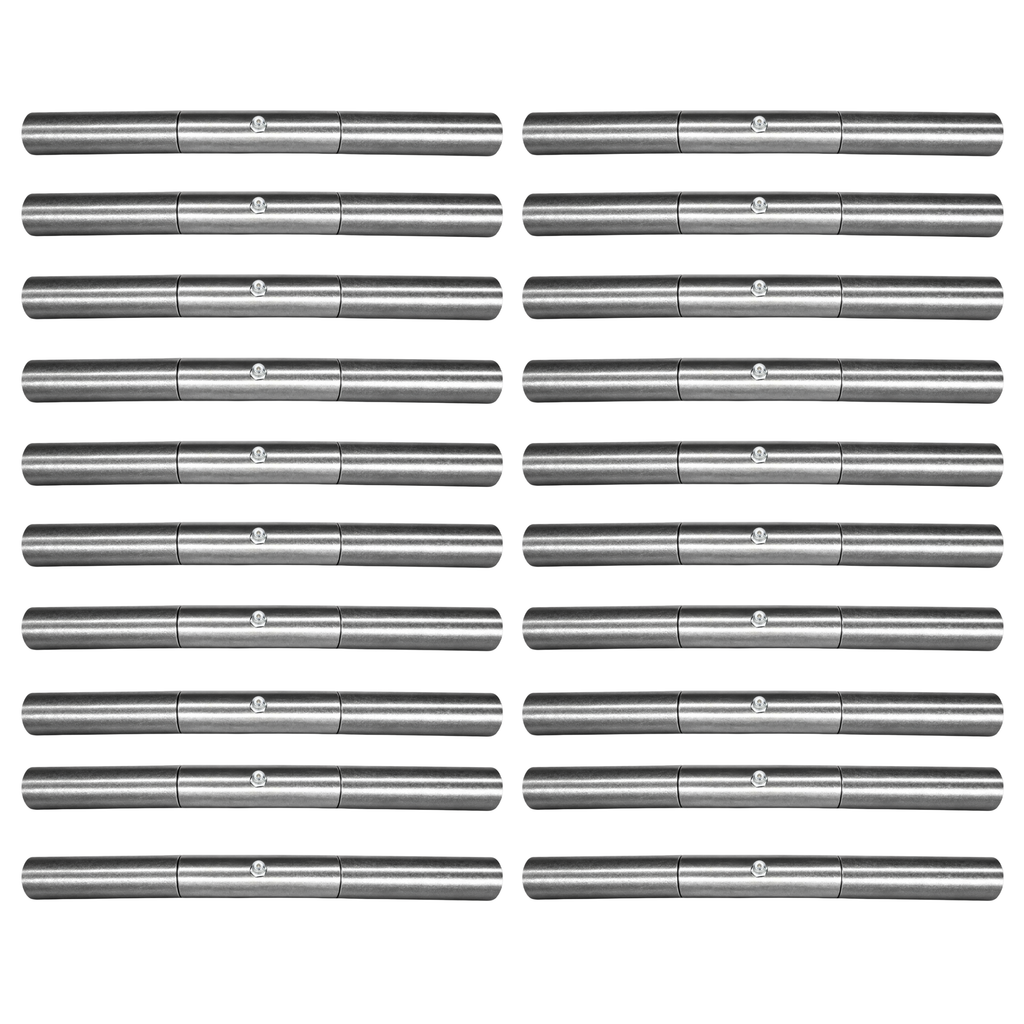

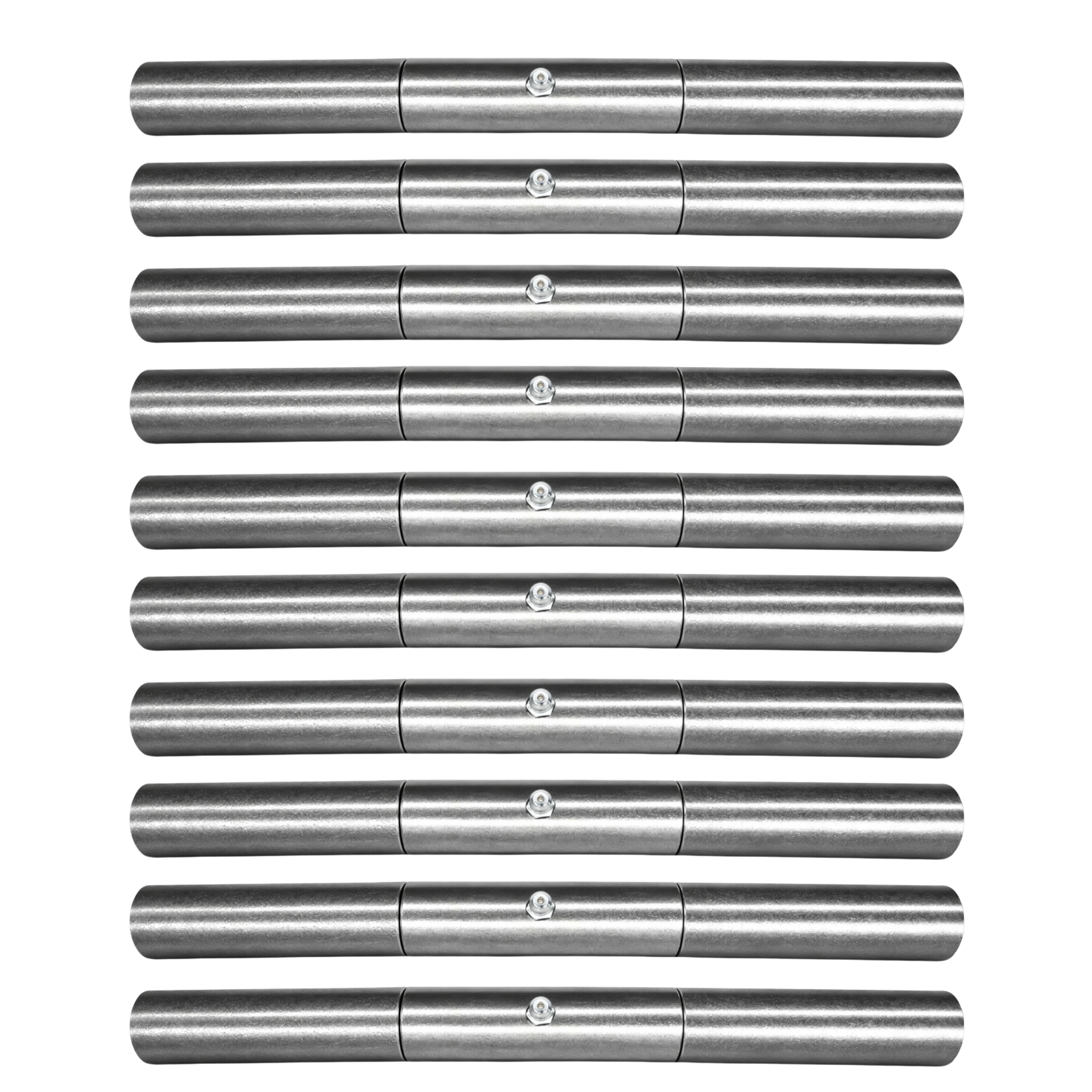

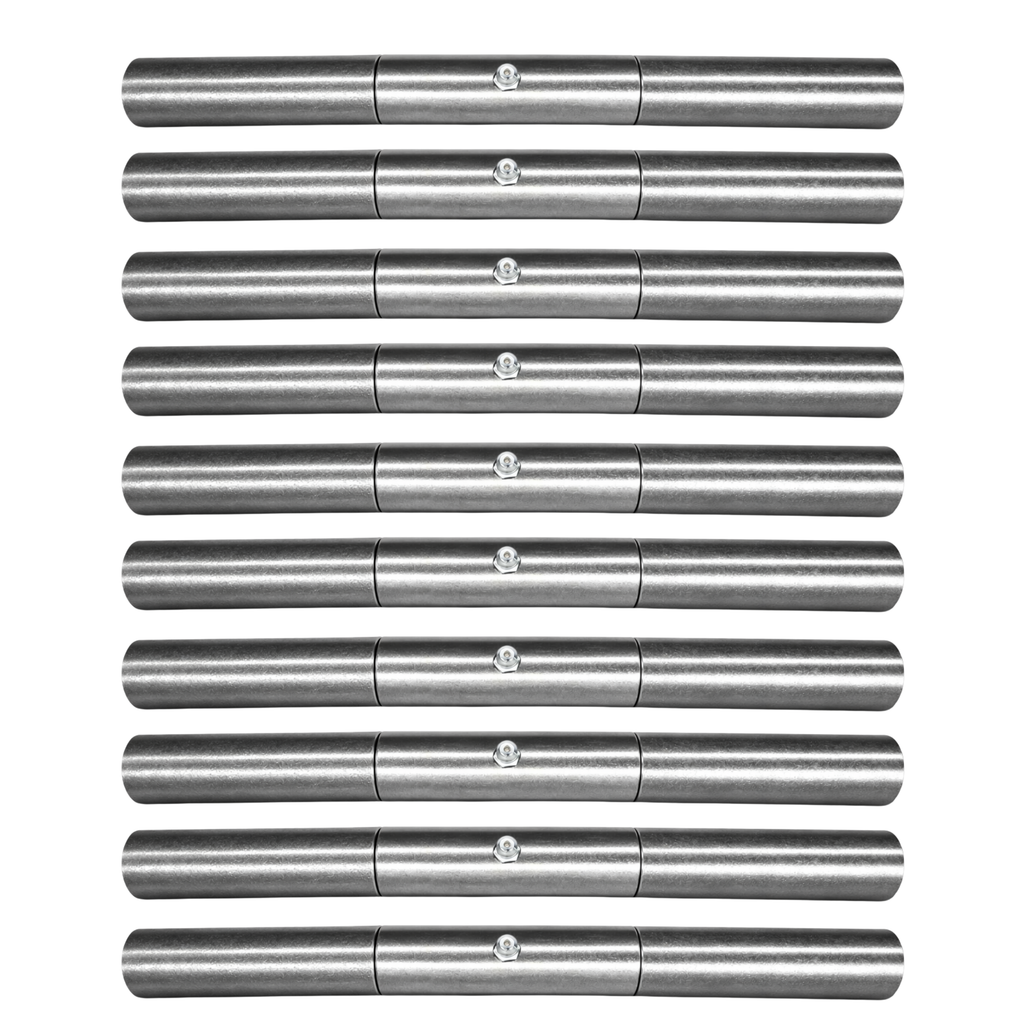

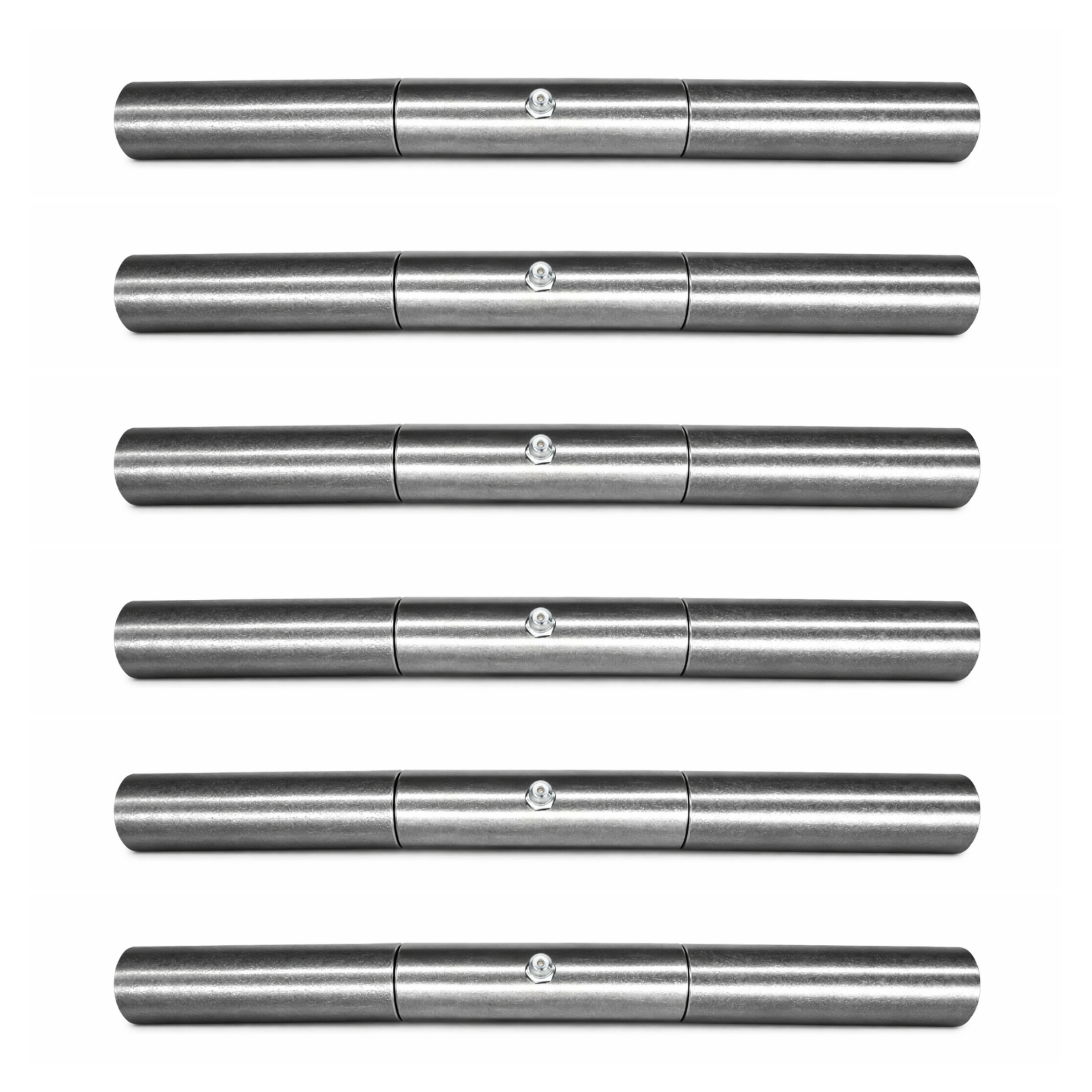

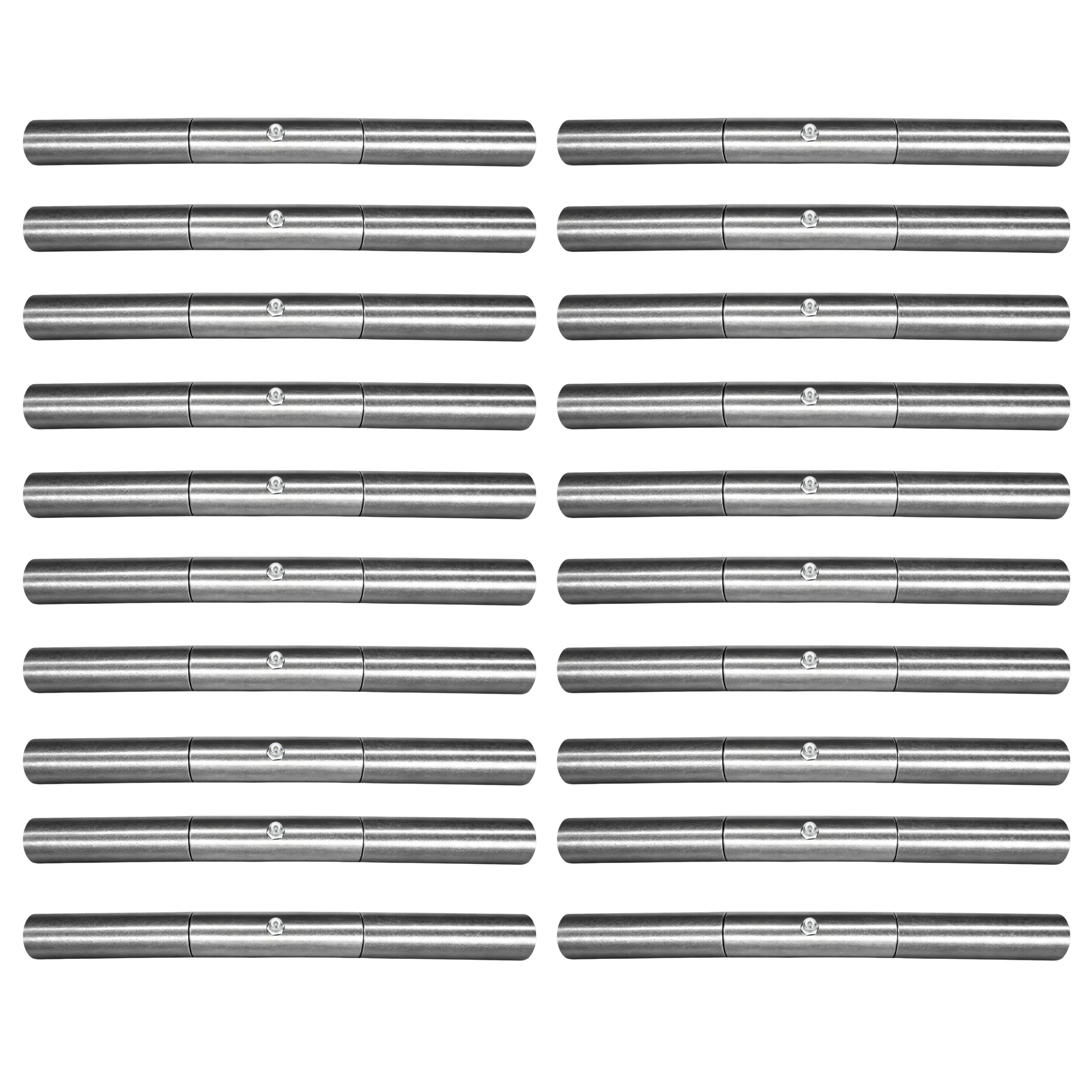

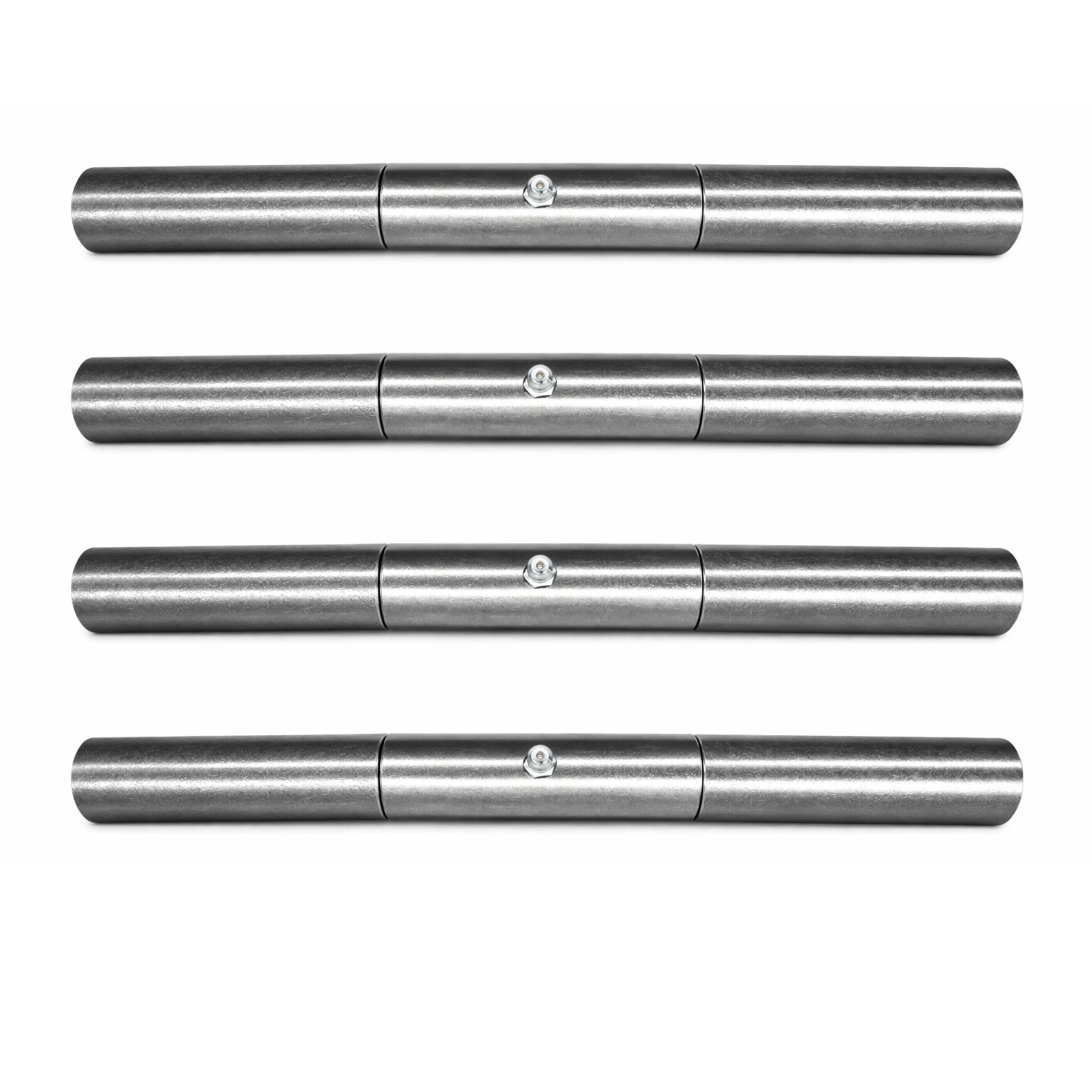

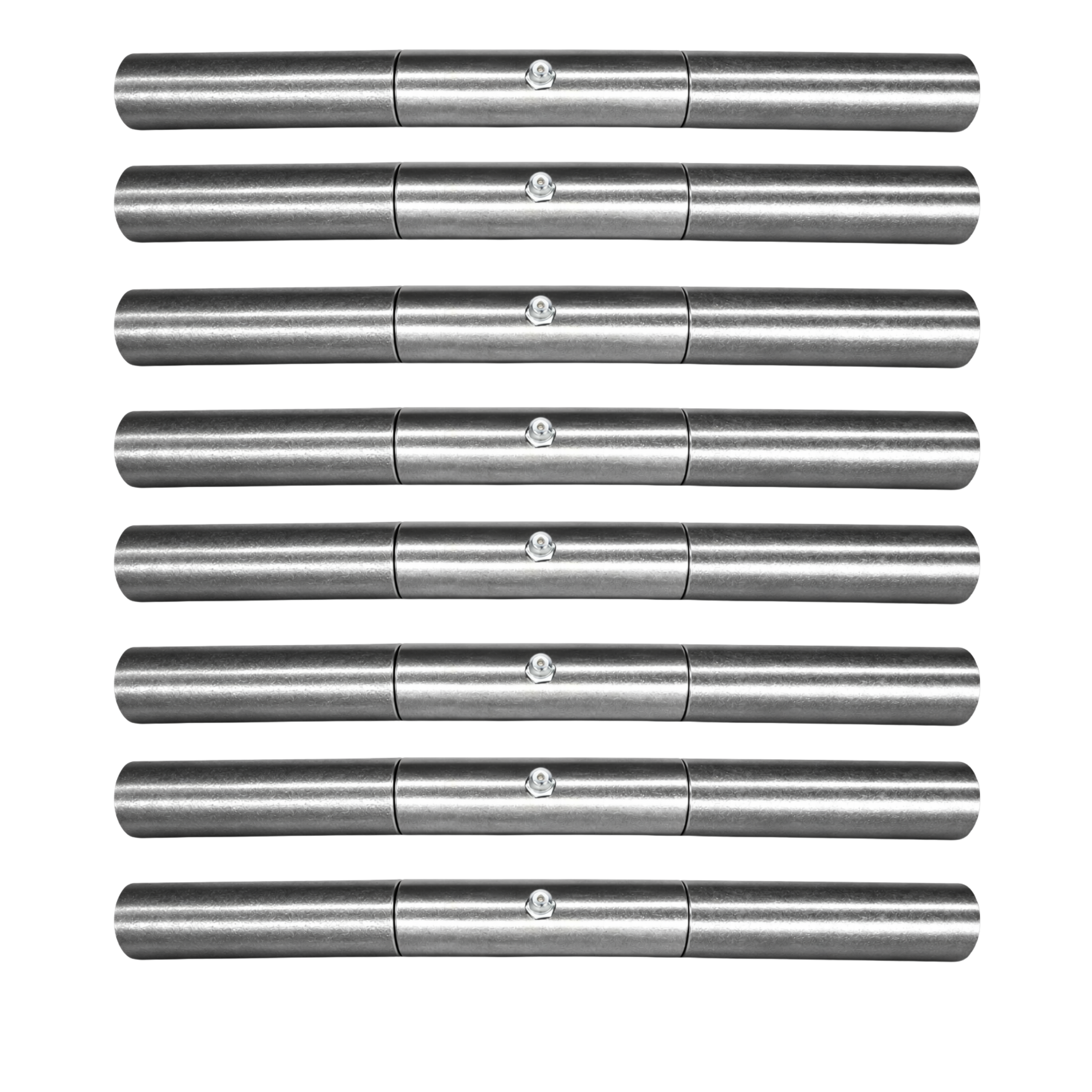

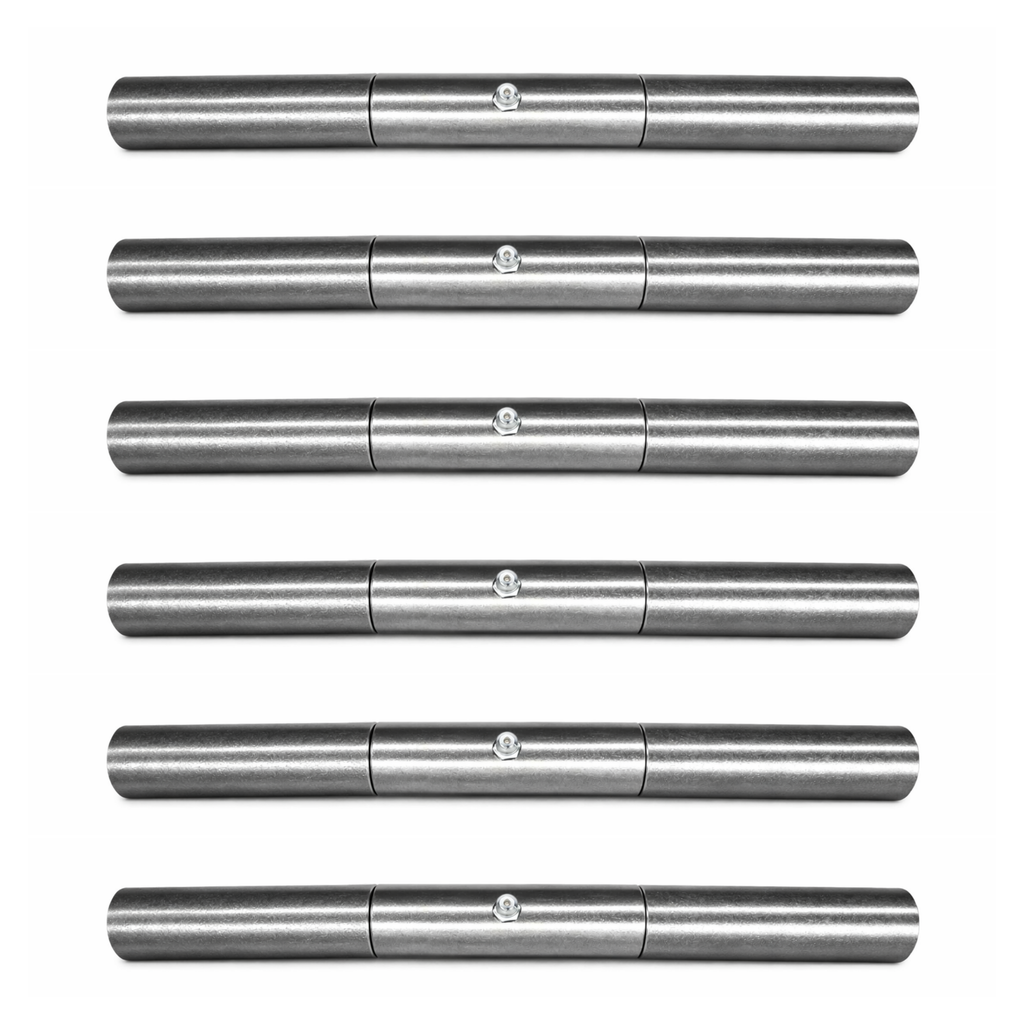

10" Heavy Duty Trailer Ramp Hinges – Greasable Steel, 500 lb Capacity

These heavy duty trailer ramp hinges are built for utility trailers, trailer ramp gates, and equipment trailers requiring strong hinge support and smooth movement. Manufactured from heavy-duty carbon steel, these greasable hinges are designed for durability, long service life, and reliable ramp operation in demanding environments.

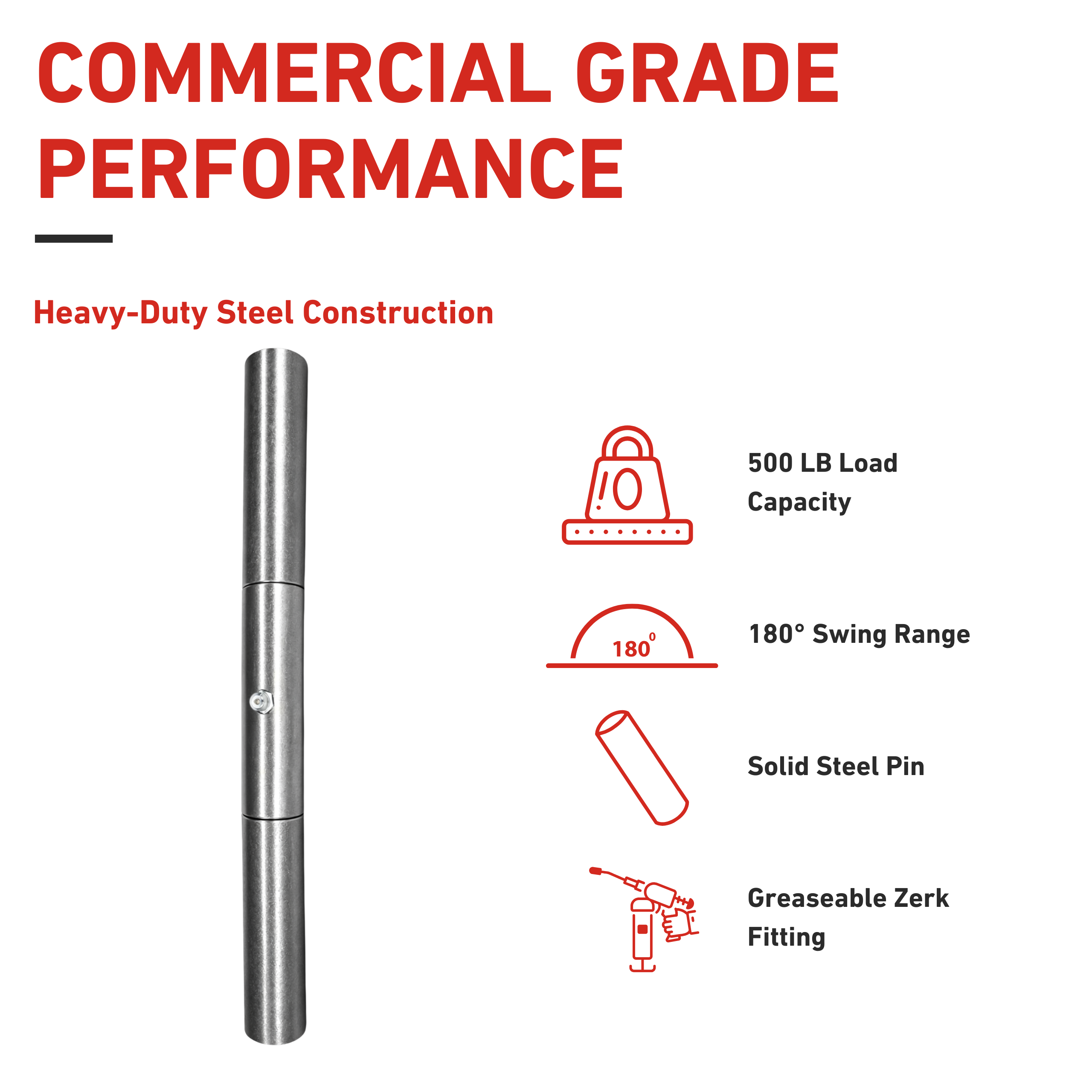

Key Features & Benefits

• Heavy-duty trailer hinge designed for ramp gates and trailer doors

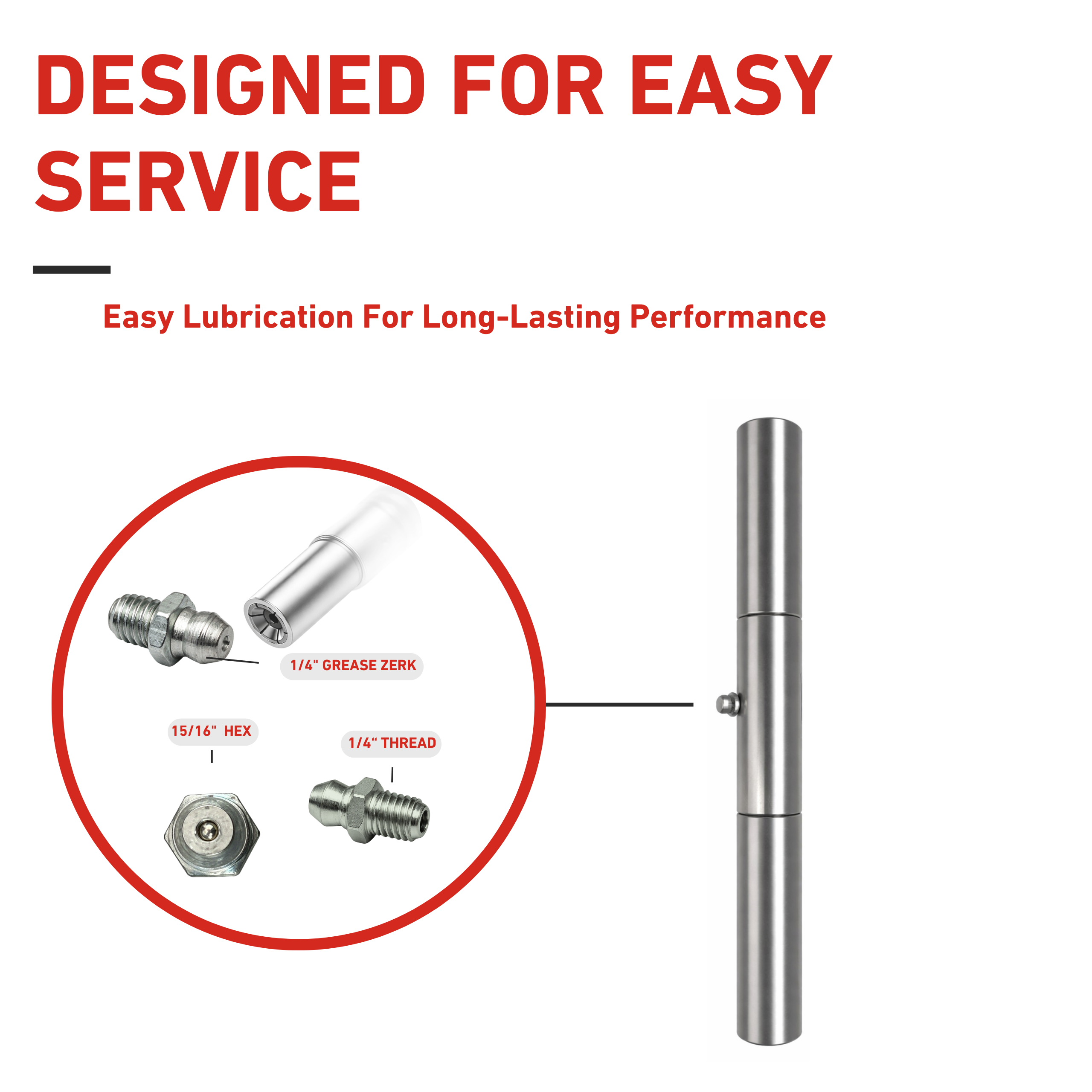

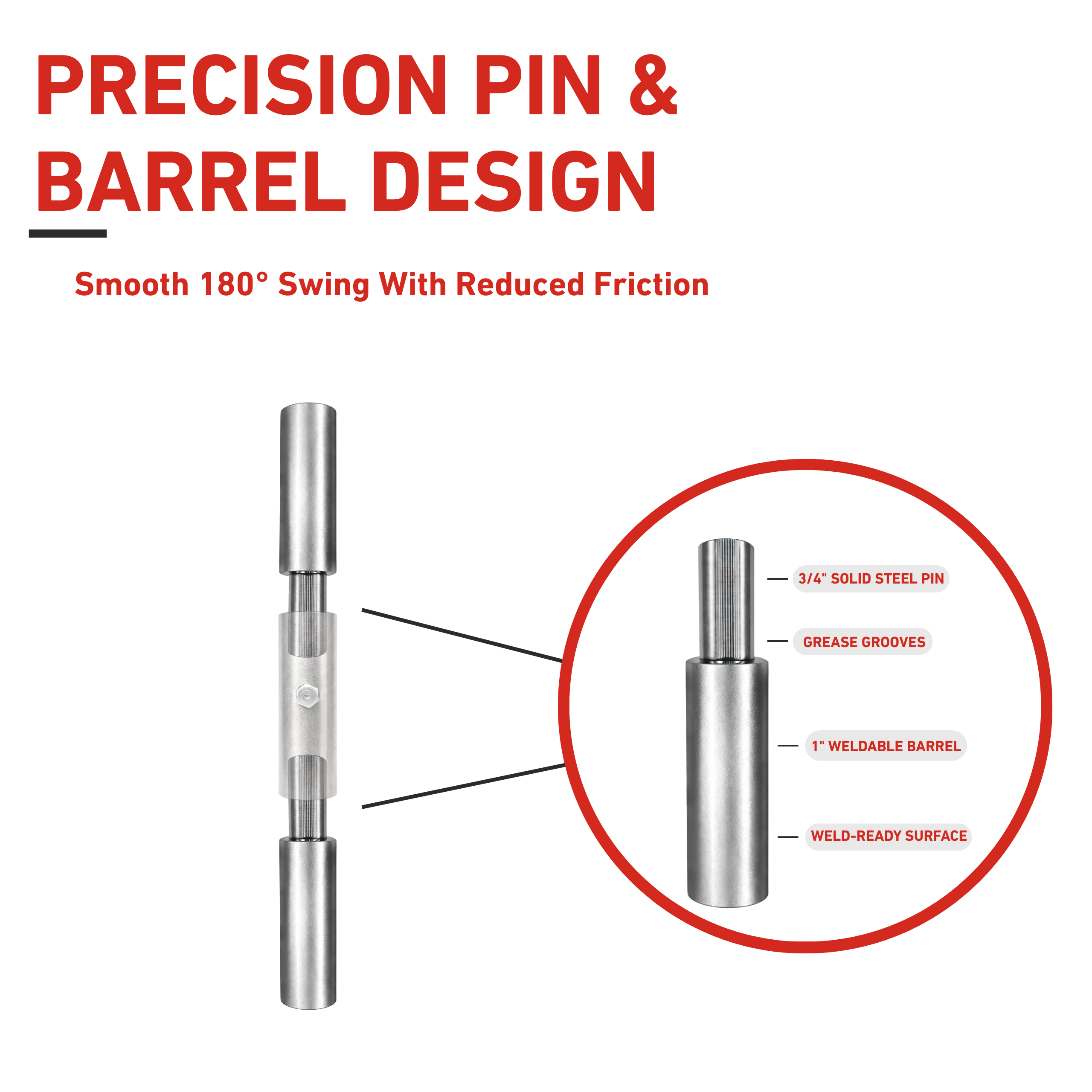

• Greasable hinge barrel with 1/4" zerk fitting for easy maintenance
• Strong carbon steel construction for long-term durability
• 500 lb load capacity per hinge for heavy trailer ramp systems
• Smooth hinge movement designed for repeated trailer loading cycles
• Ideal for utility trailers, equipment trailers, and cargo trailers

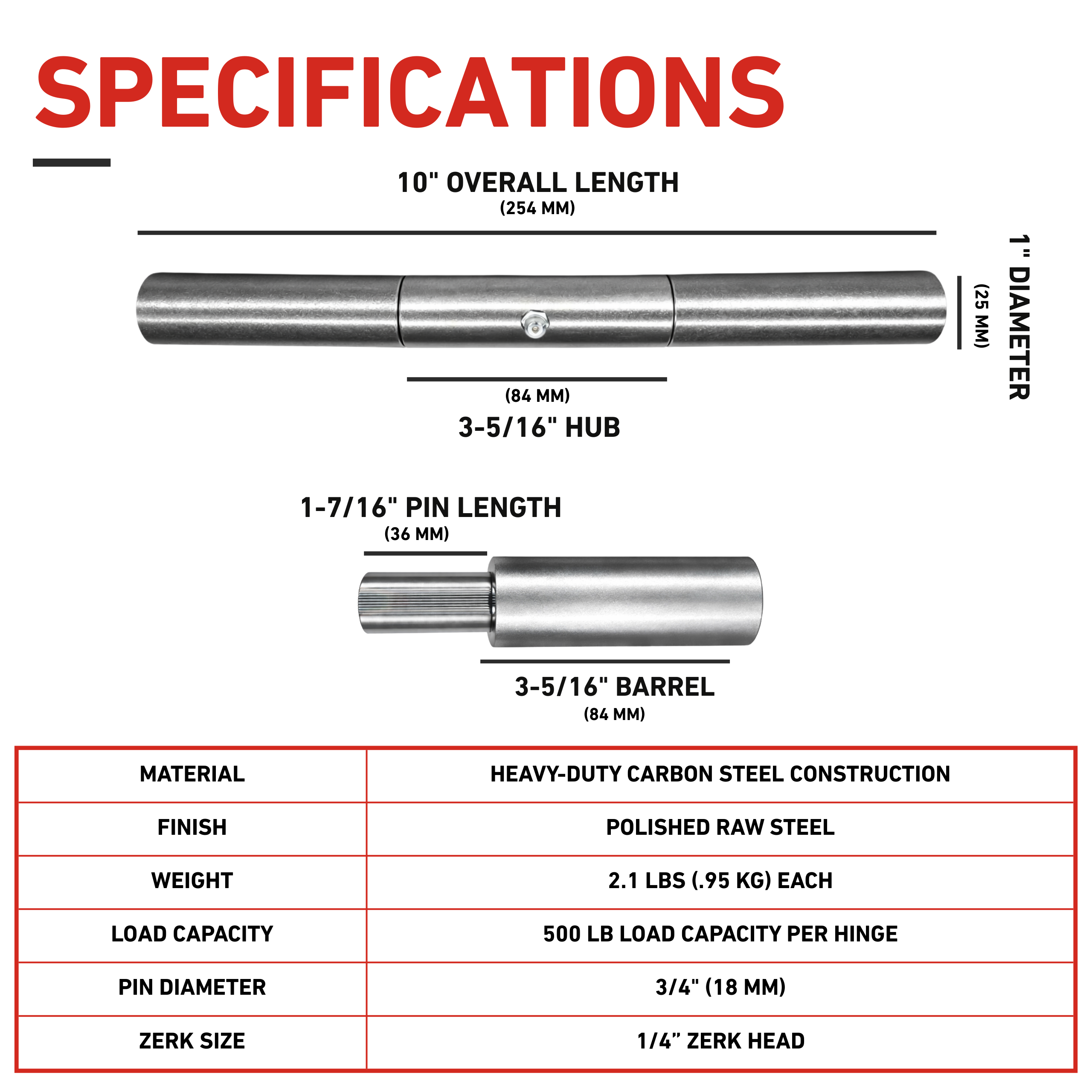

Specifications

• Overall Length: 10" (254 mm)
• Hub Length: 3-5/16" (84 mm)
• Barrel Length: 3-5/16" (84 mm)
• Pin Length: 1-7/16" (36 mm)
• Pin Diameter: 3/4" (18 mm)
• Diameter: 1" (25 mm)
• Material: Heavy-Duty Carbon Steel Construction
• Finish: Polished Raw Steel
• Weight: 2.1 lbs (.95 kg) Each
• Load Capacity: 500 lb Per Hinge
• Grease Fitting: 1/4" Zerk Head

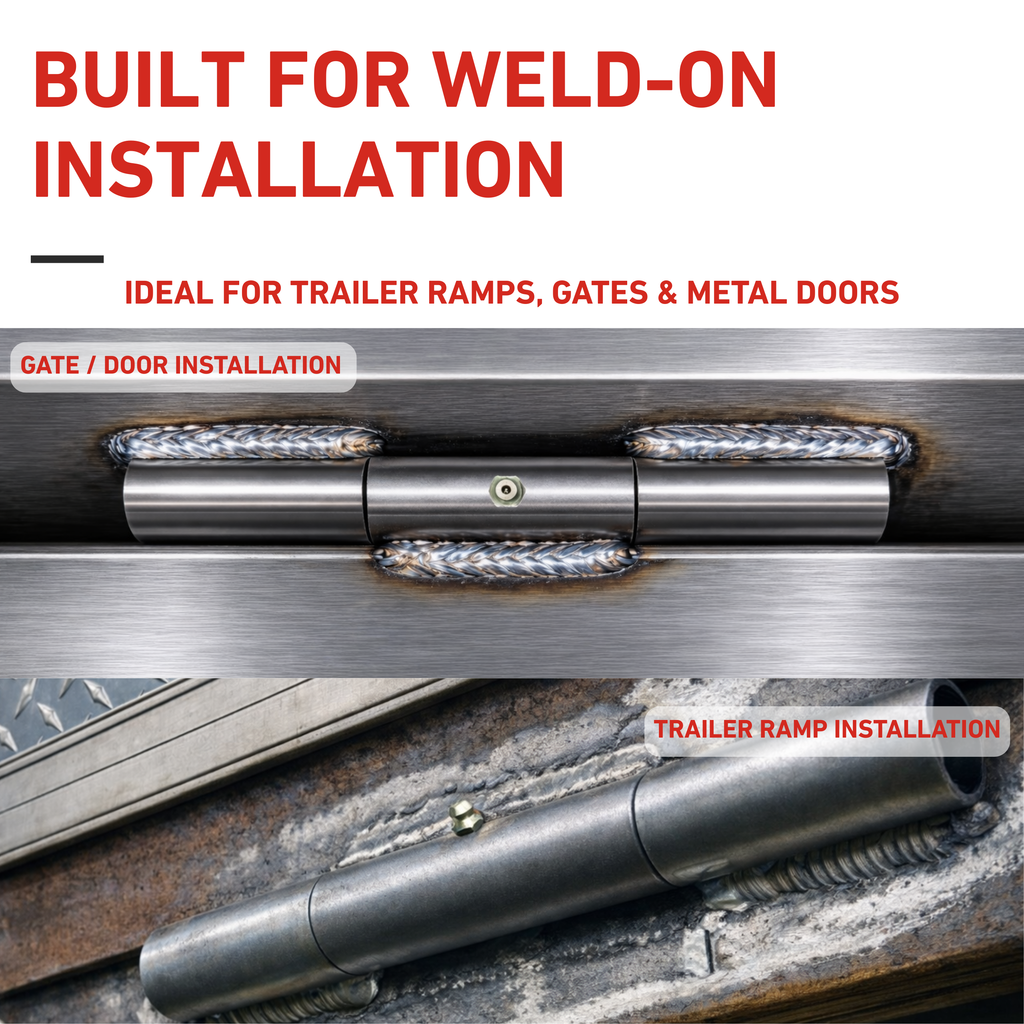

Ideal Applications

Utility trailer ramp gates, trailer rear doors, equipment trailers, cargo trailers, dump trailer ramps, and heavy-duty trailer hinge replacements.
