13” Heavy Duty Gate Strap Hinge – 900 lb Bolt or Weld-On

This 13” heavy duty gate strap hinge supports large wood
and metal gates with smooth, stable movement. The dual
ball bearing system reduces friction under load, while the
greaseable fitting allows routine maintenance outdoors.

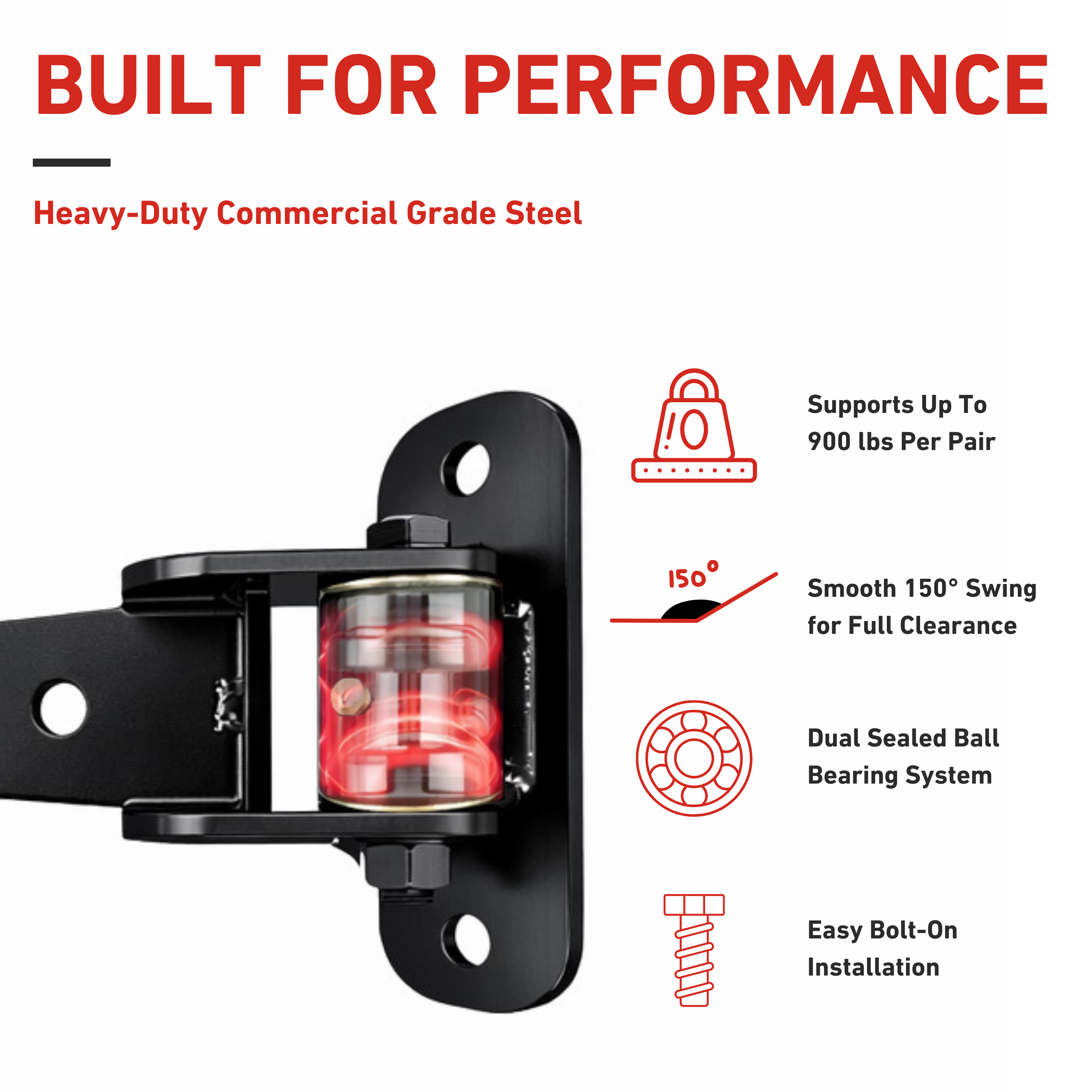

Key Features & Benefits

• 900 lb load capacity per pair for heavy gate support

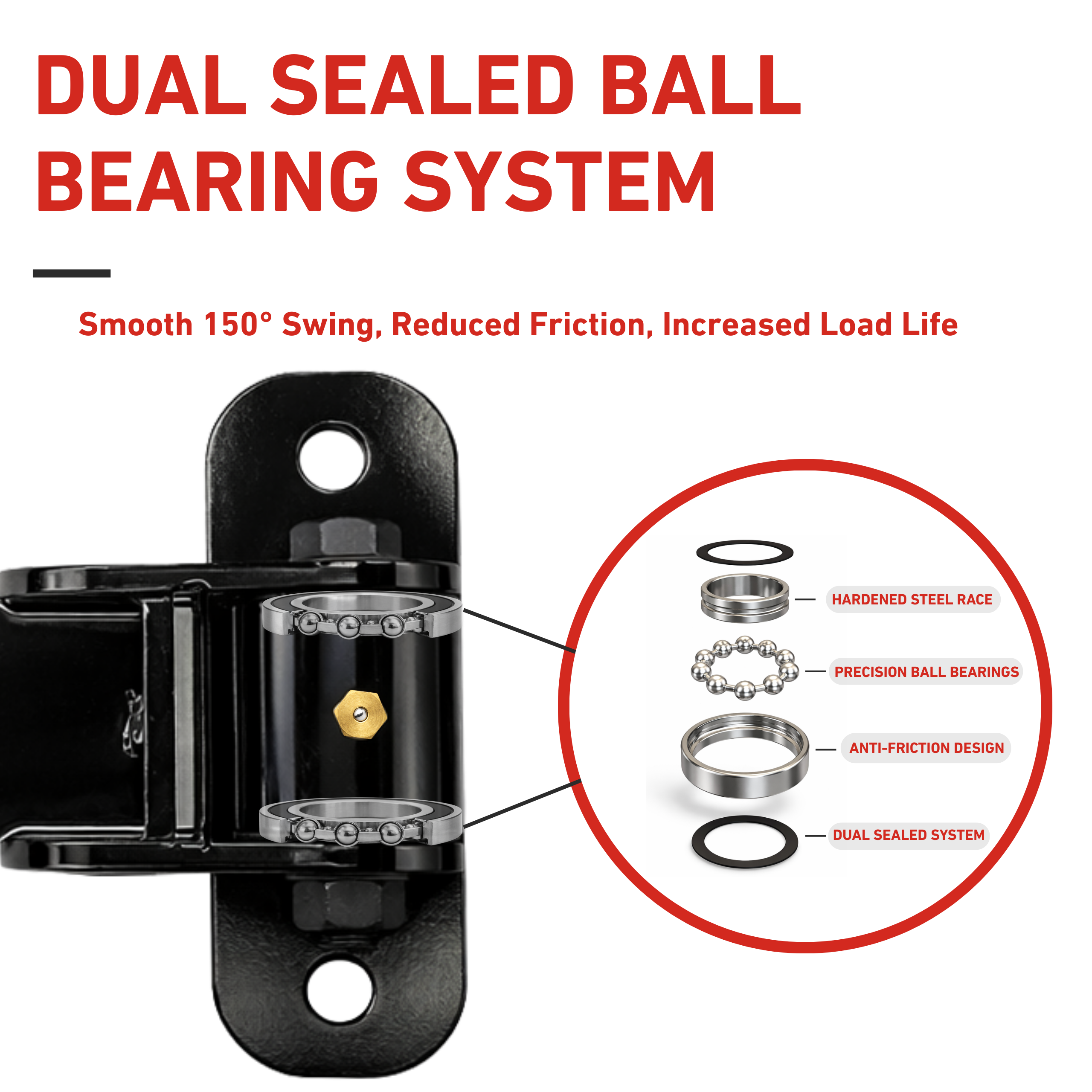

• Dual ball bearing system for smoother operation
• Bolt-on or weld-on mounting flexibility

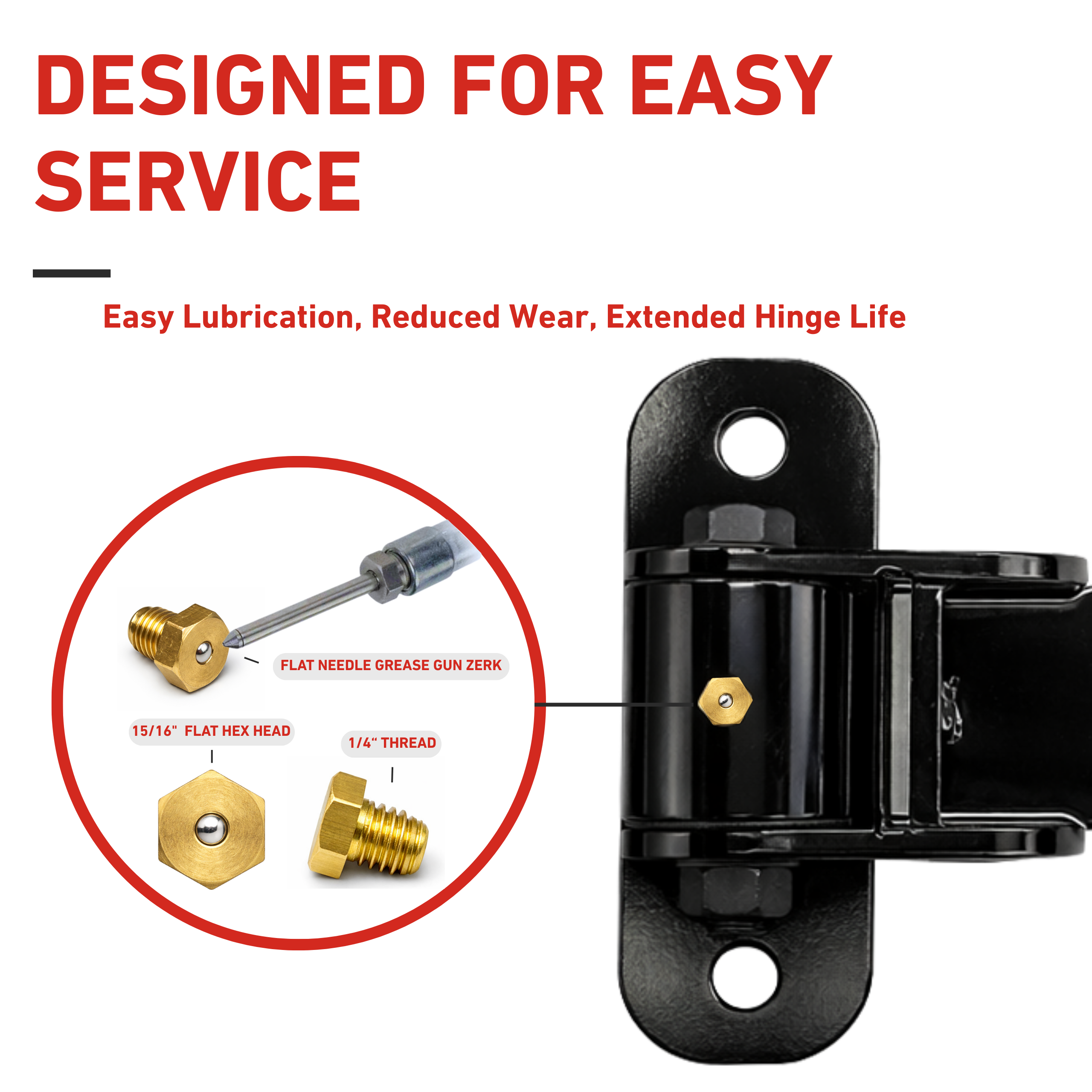

• Flat head grease zerk for needle gun maintenance
• Black powder-coated finish for corrosion resistance
• 150° swing range for wide gate opening

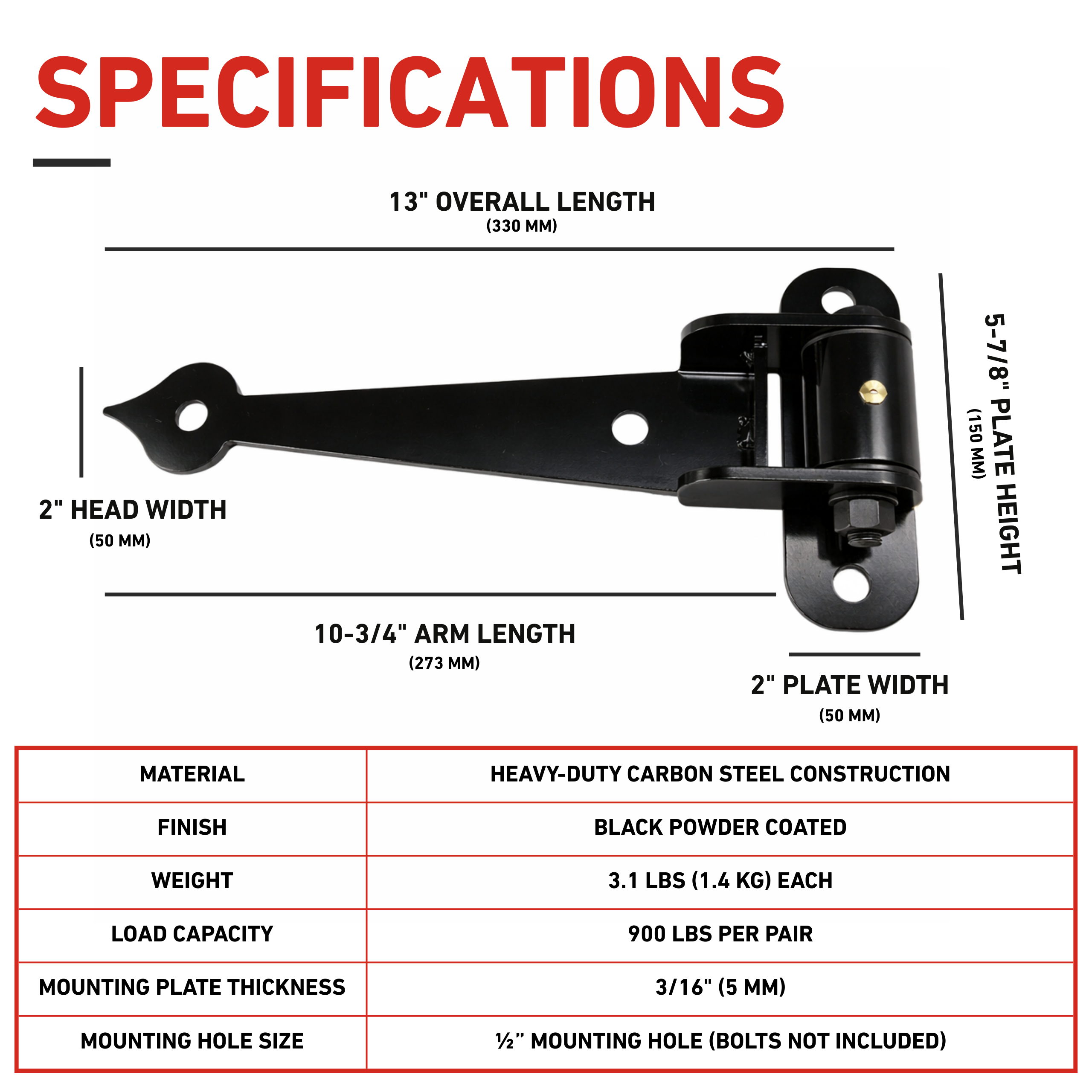

Specifications

• Overall Length: 13” (330 mm)
• Plate Height: 5-7/8” (150 mm)
• Plate Width: 2” (50 mm)
• Arm Length: 10-3/4” (273 mm)
• Head Width: 2” (50 mm)
• Mounting Plate Thickness: 3/16” (5 mm)
• Mounting Hole Size: 1/2” (Bolts Not Included)
• Load Capacity: 900 lbs per pair
• Swing Range: 150°
• Weight: 3.1 lbs (1.4 kg) each
• Material: Heavy-Duty Carbon Steel
• Finish: Black Powder Coated

Ideal Applications

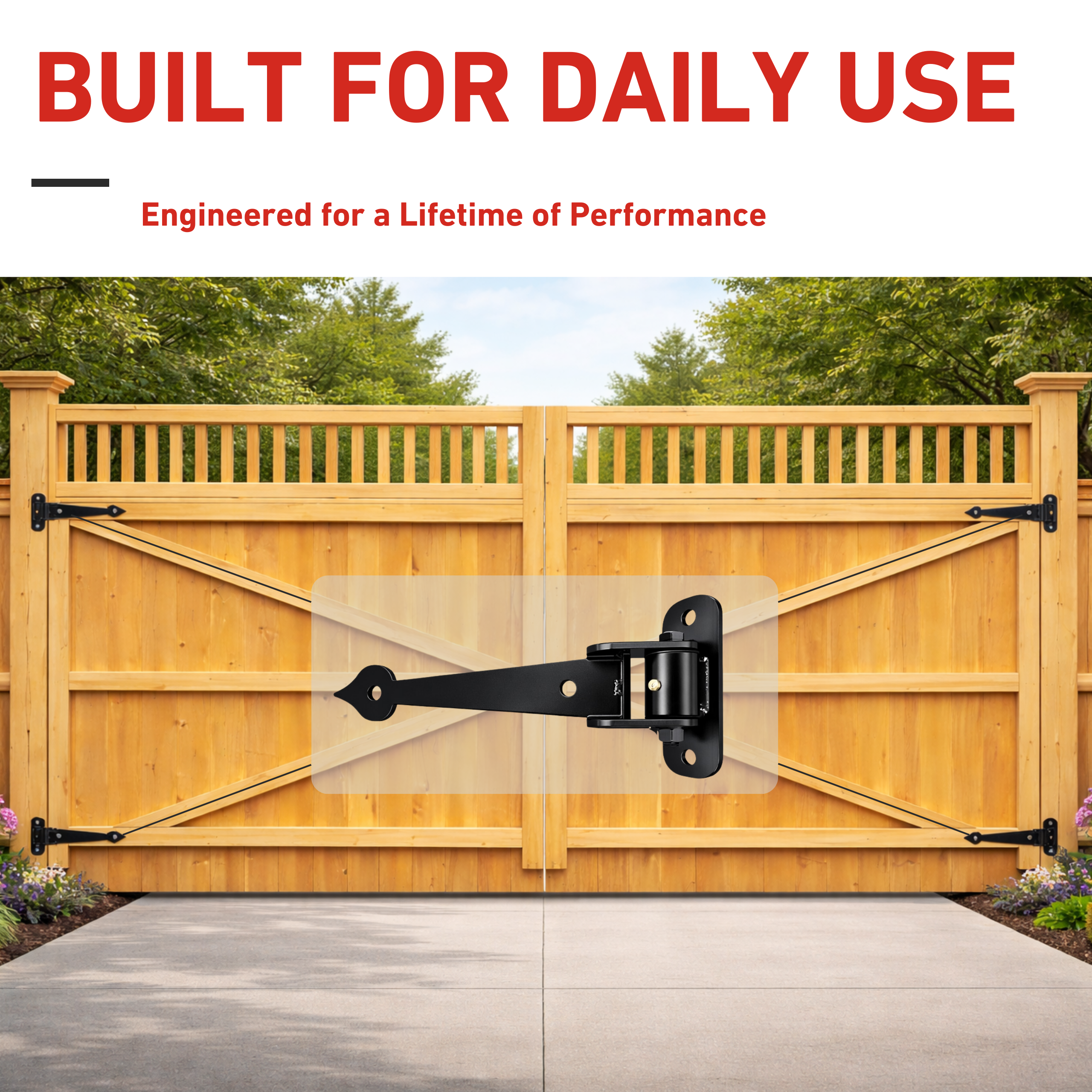

Driveway gates, ranch gates, farm fencing, security gates,
and commercial gate systems.
