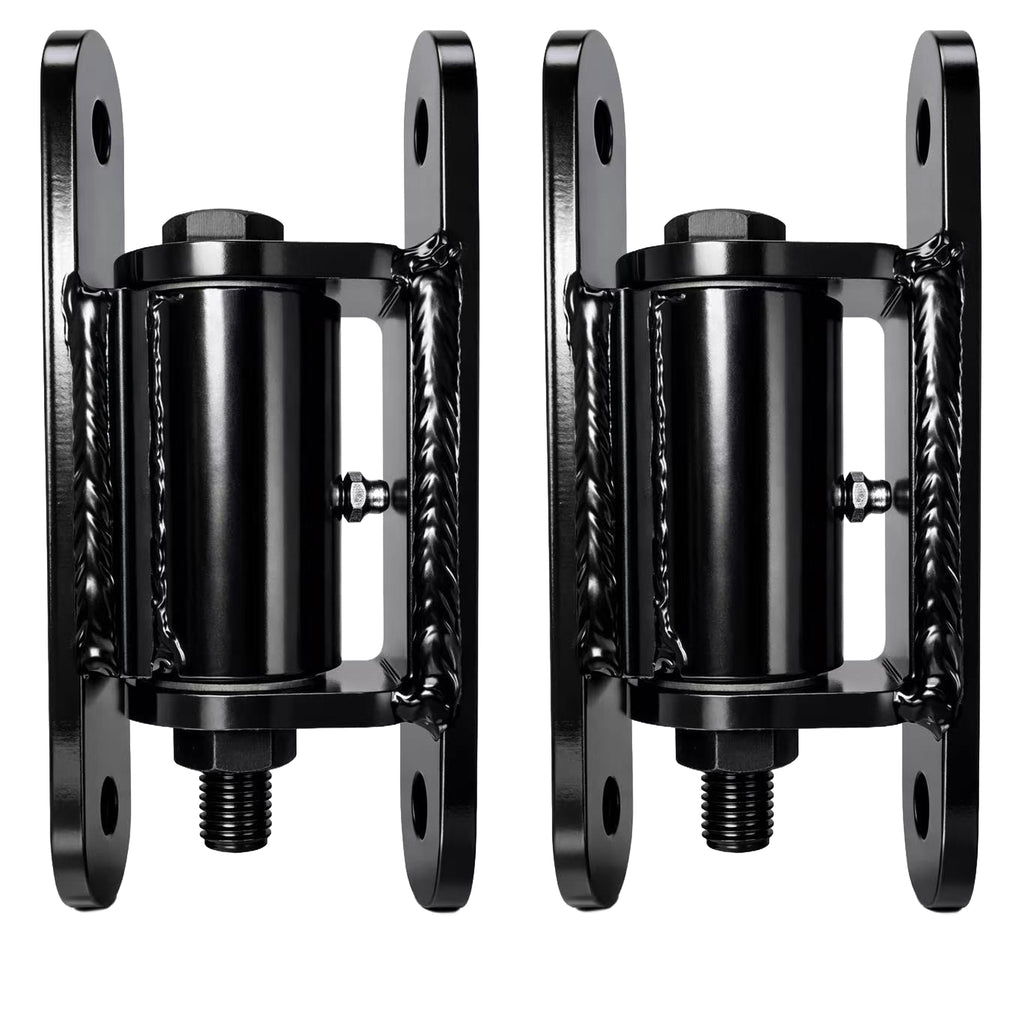

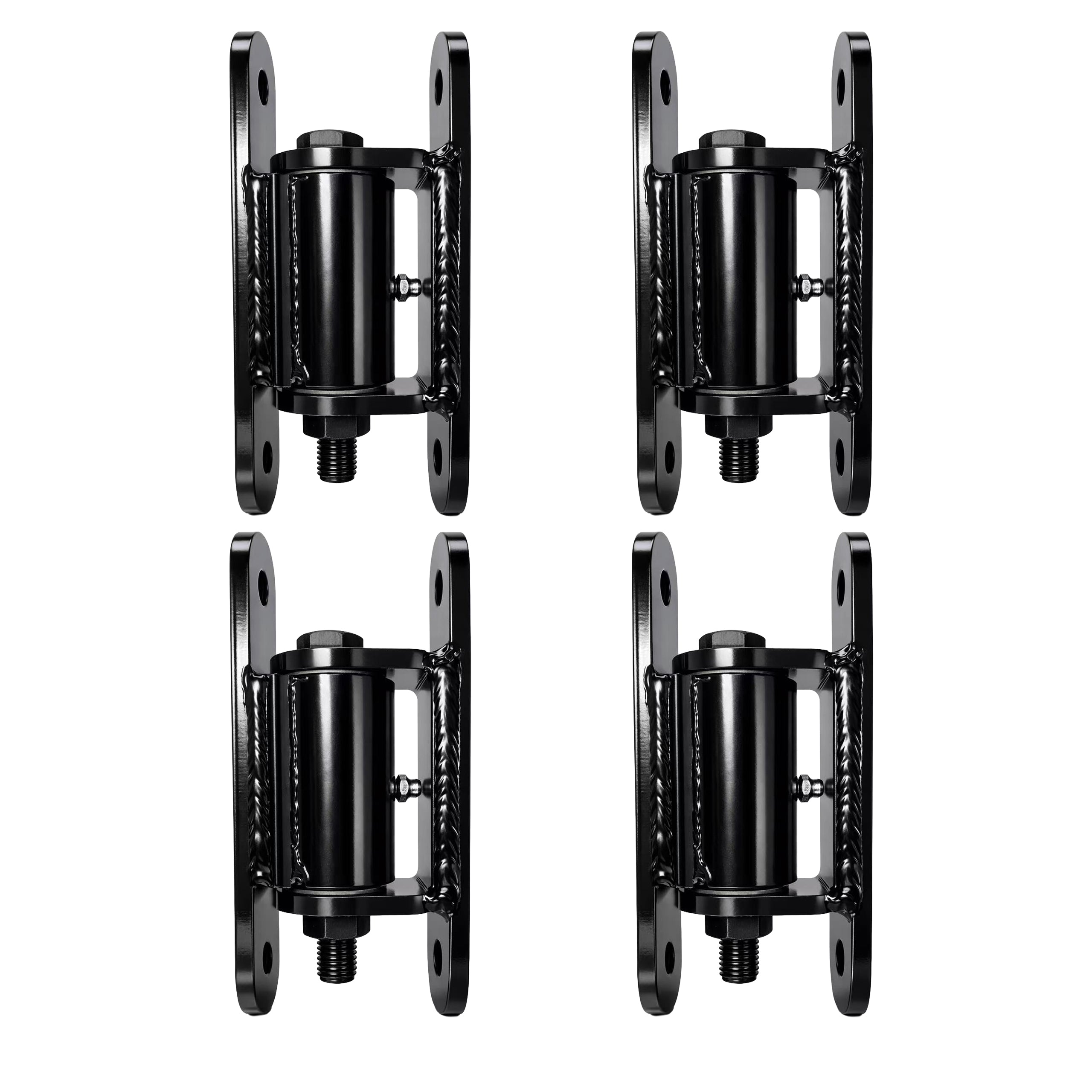

These 7" heavy duty gate hinges are designed to eliminate sagging, binding, and premature wear in large gate systems. Built from solid steel and rated for up to 1,100 lbs per set of two hinges, they are ideal for heavy driveway gates, ranch entrances, and industrial fencing applications.
Key Features & Benefits

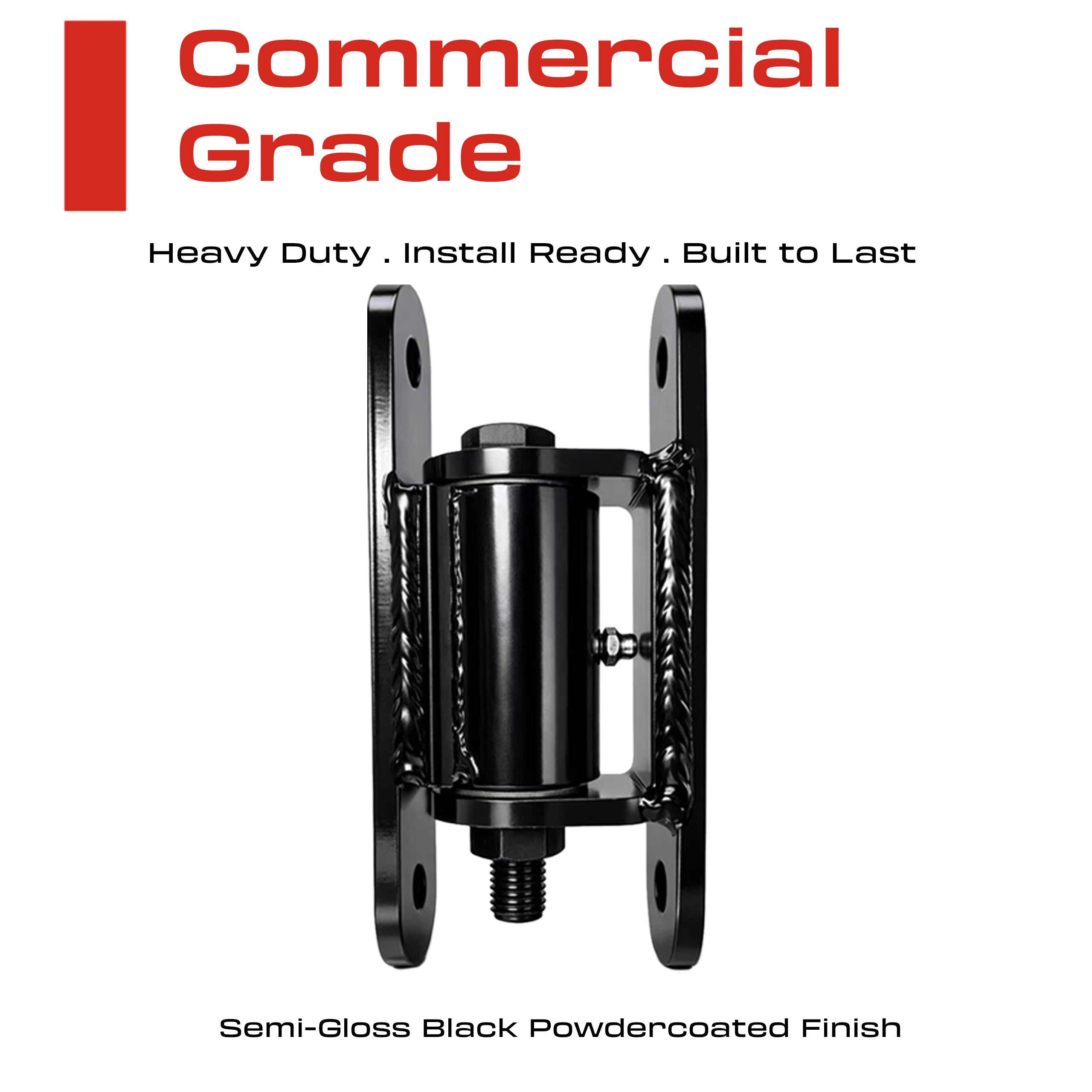

• Supports up to 1,100 lbs per set of two hinges for heavy-duty gate installations

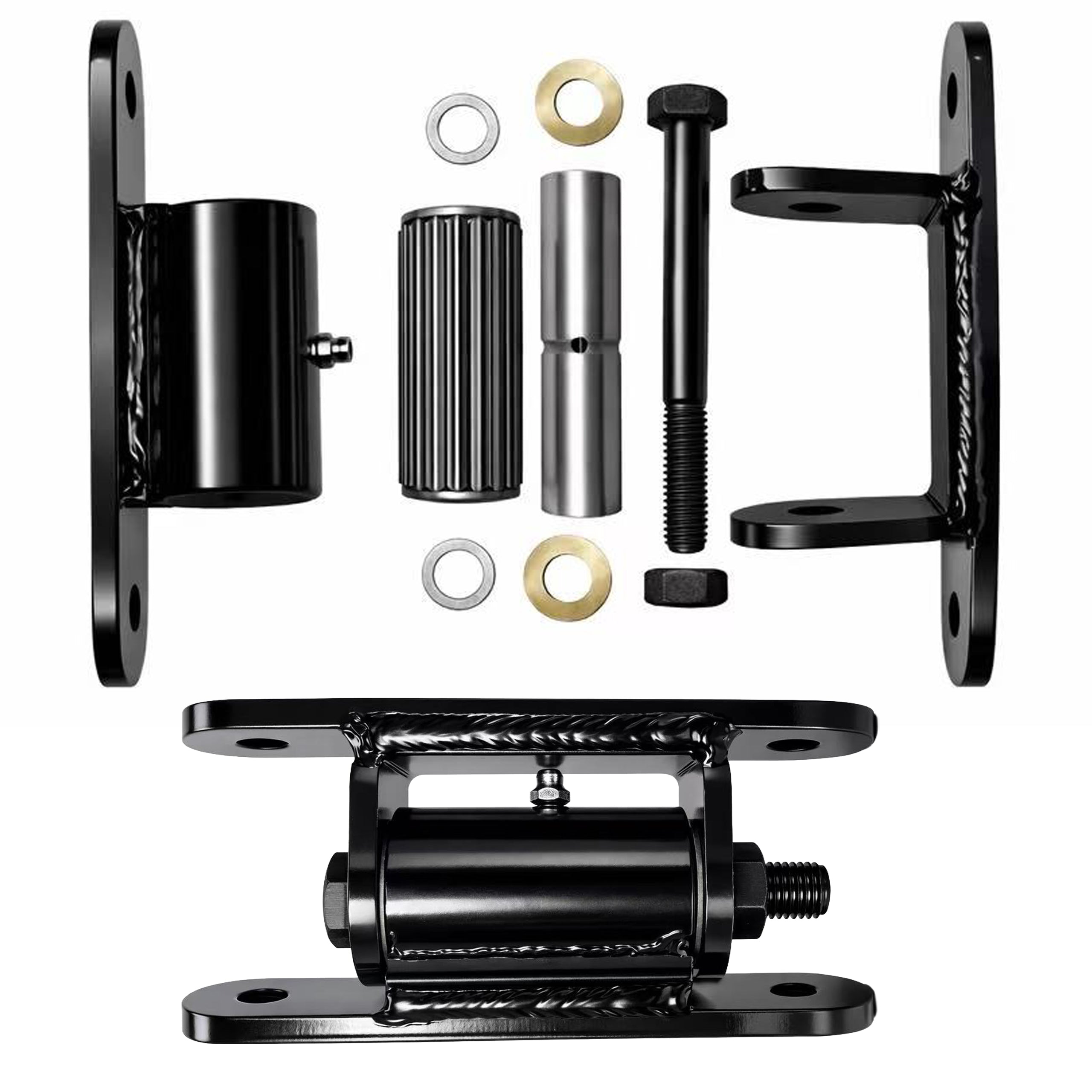

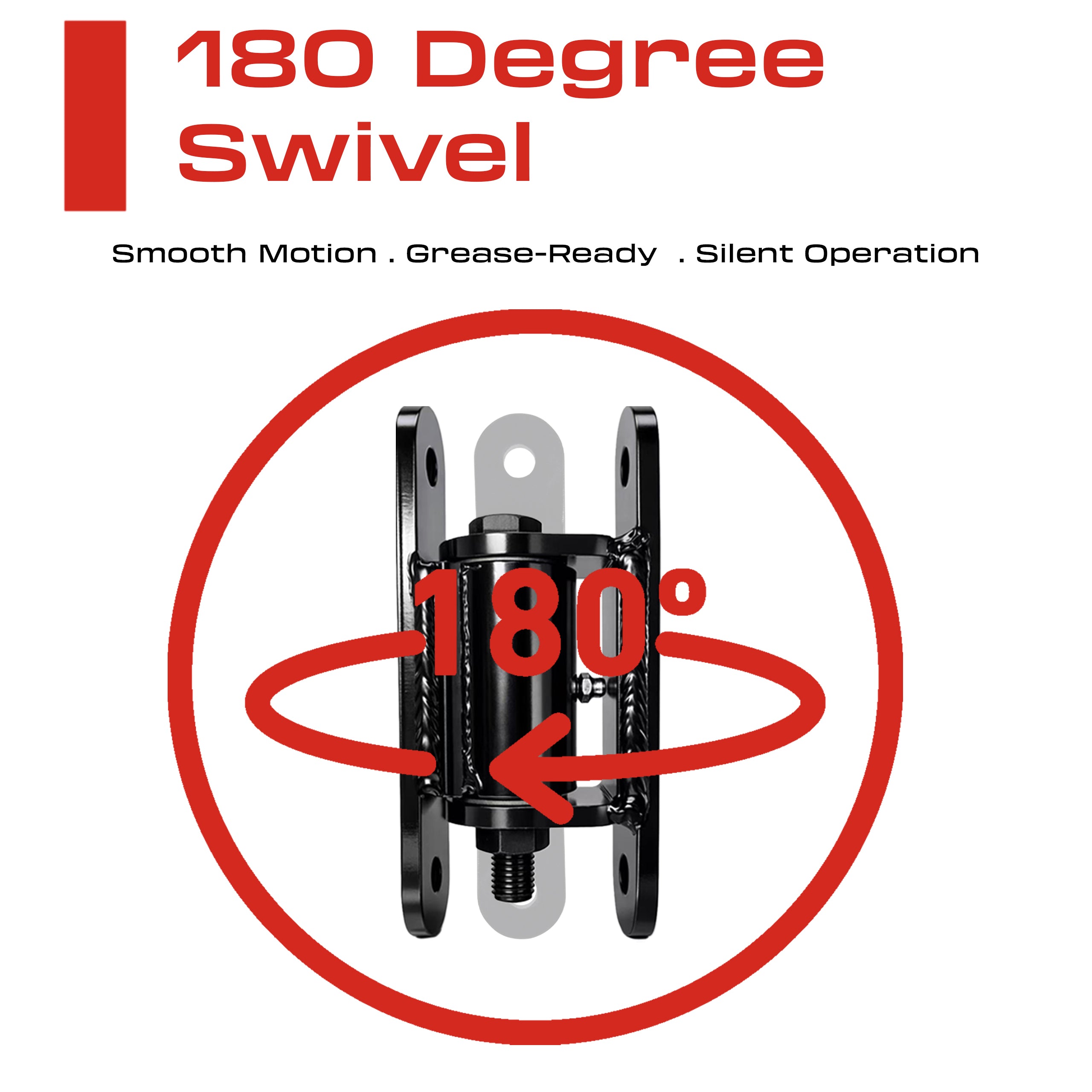

• Precision needle bearing design delivers a smooth, silent 180° swing

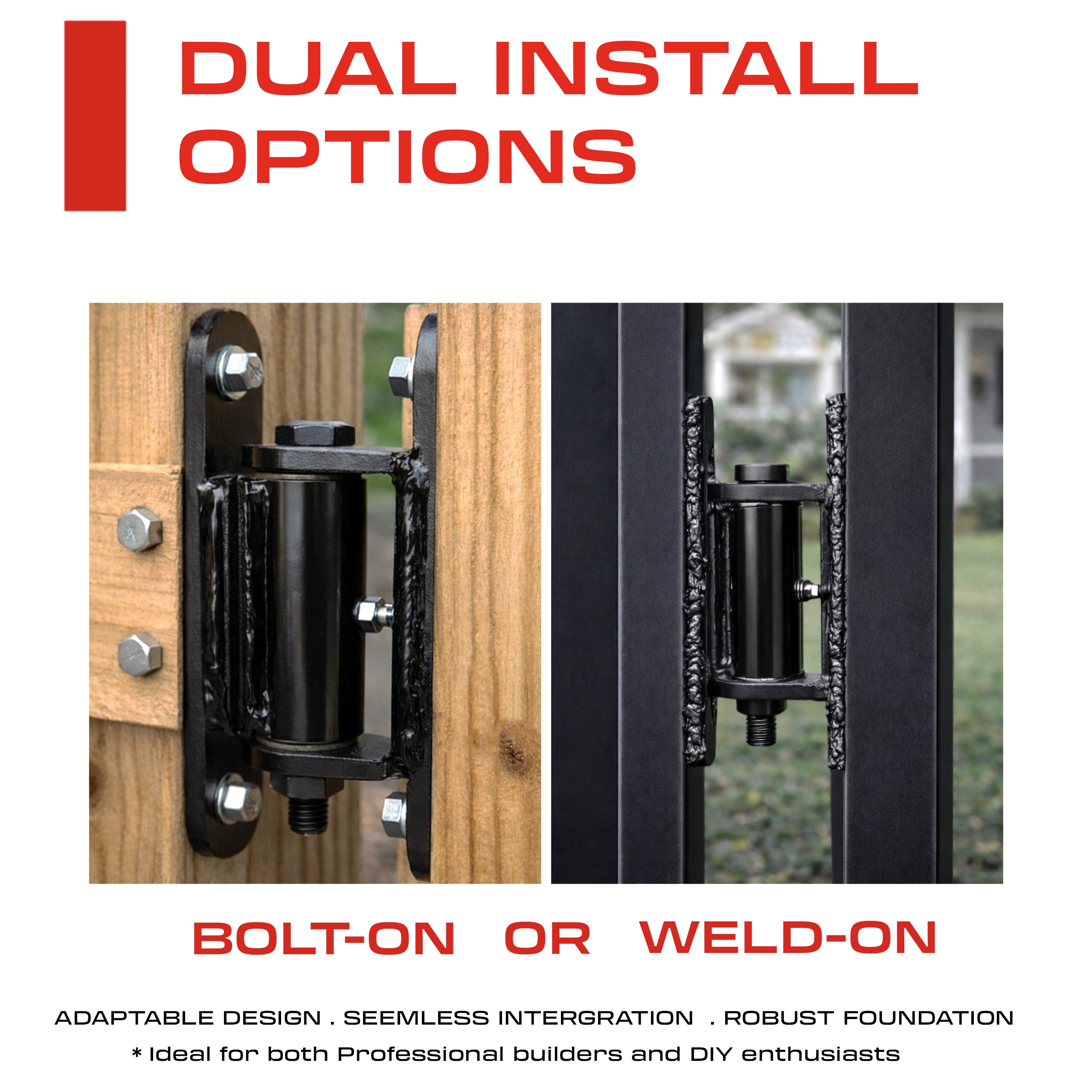

• Dual-mount design allows bolt-on installation or direct welding

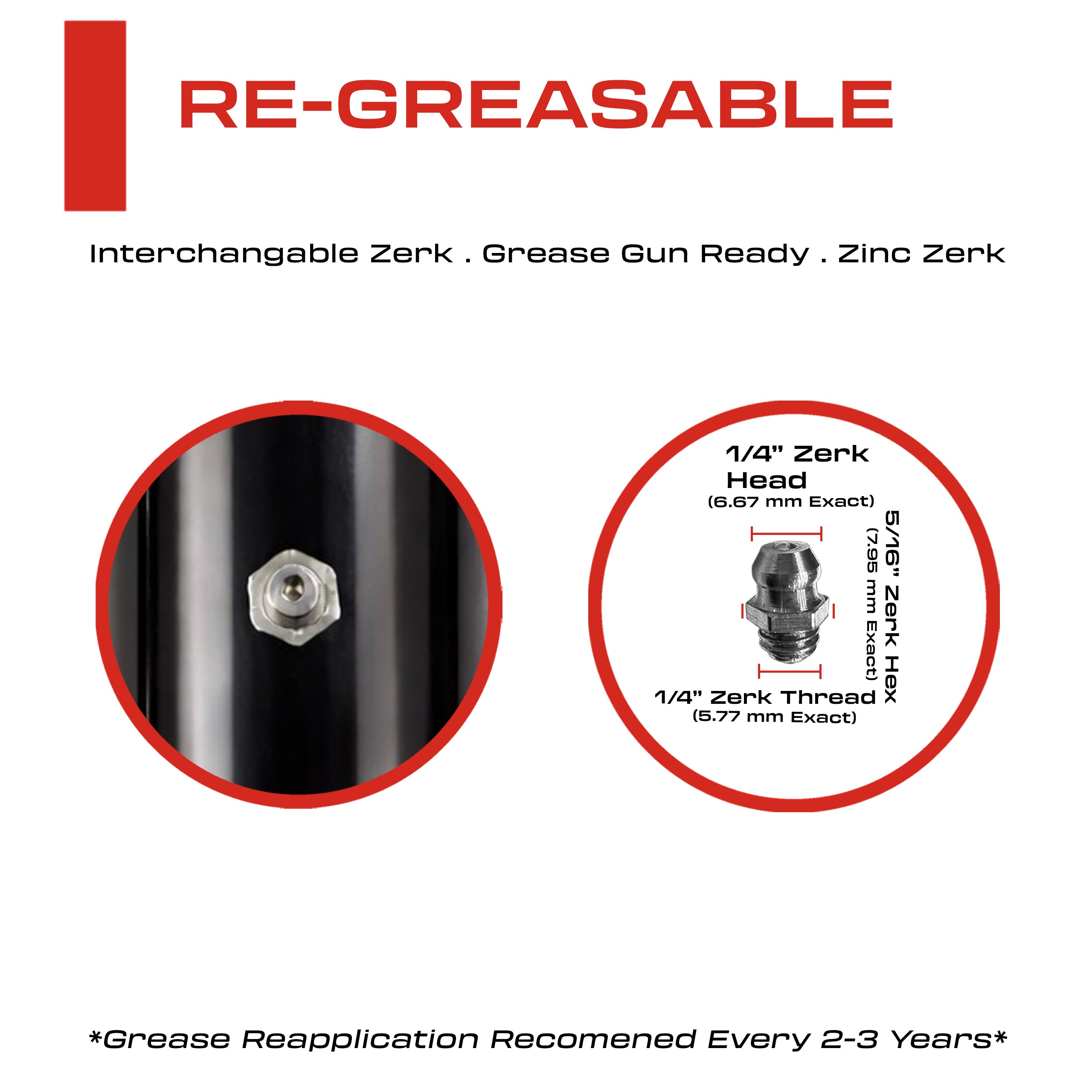

• Integrated grease zerk fitting enables easy lubrication and long-term performance
• Black powder coated steel resists rust and corrosion in outdoor environments

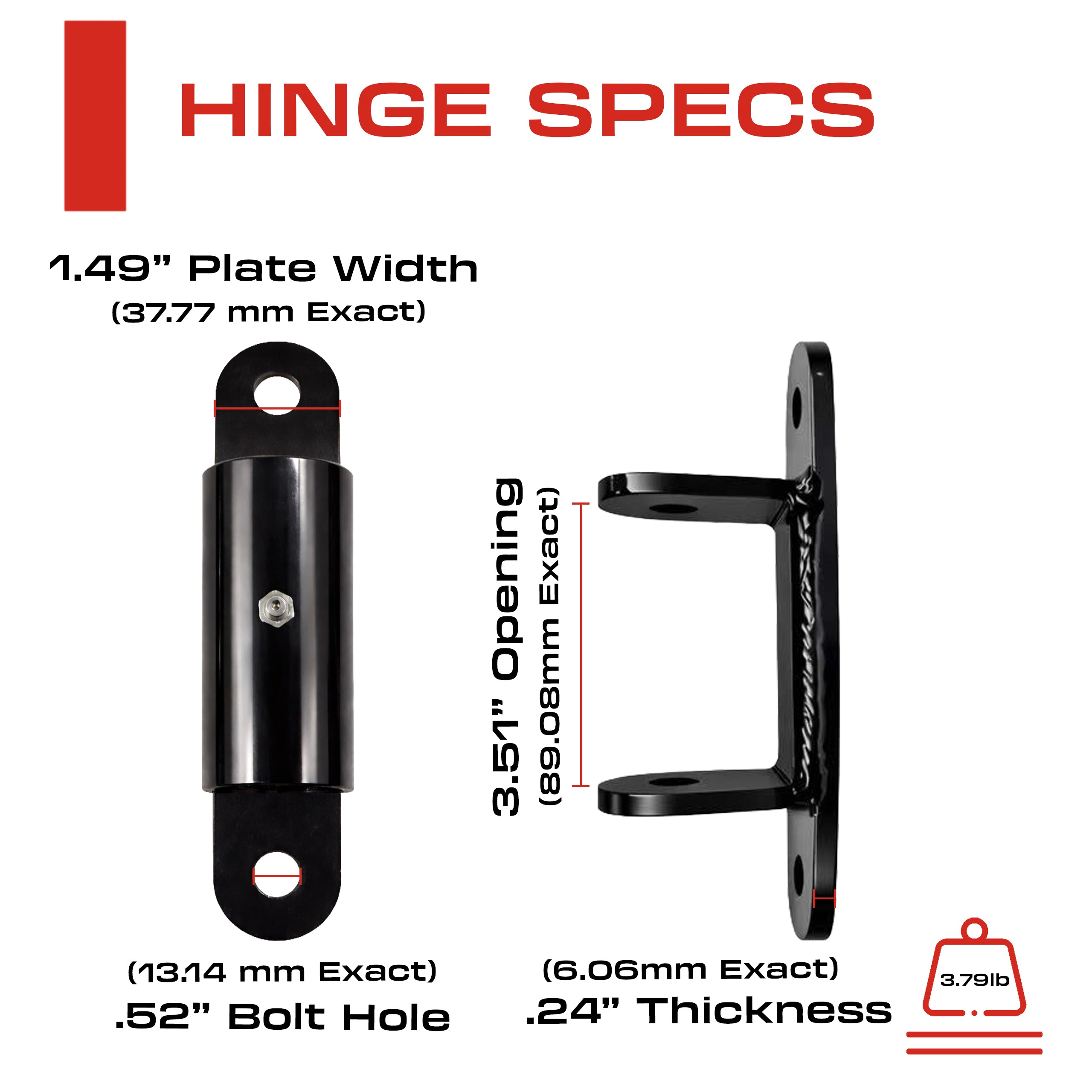

Specifications
• Material: Steel
• Finish: Black Powder Coated

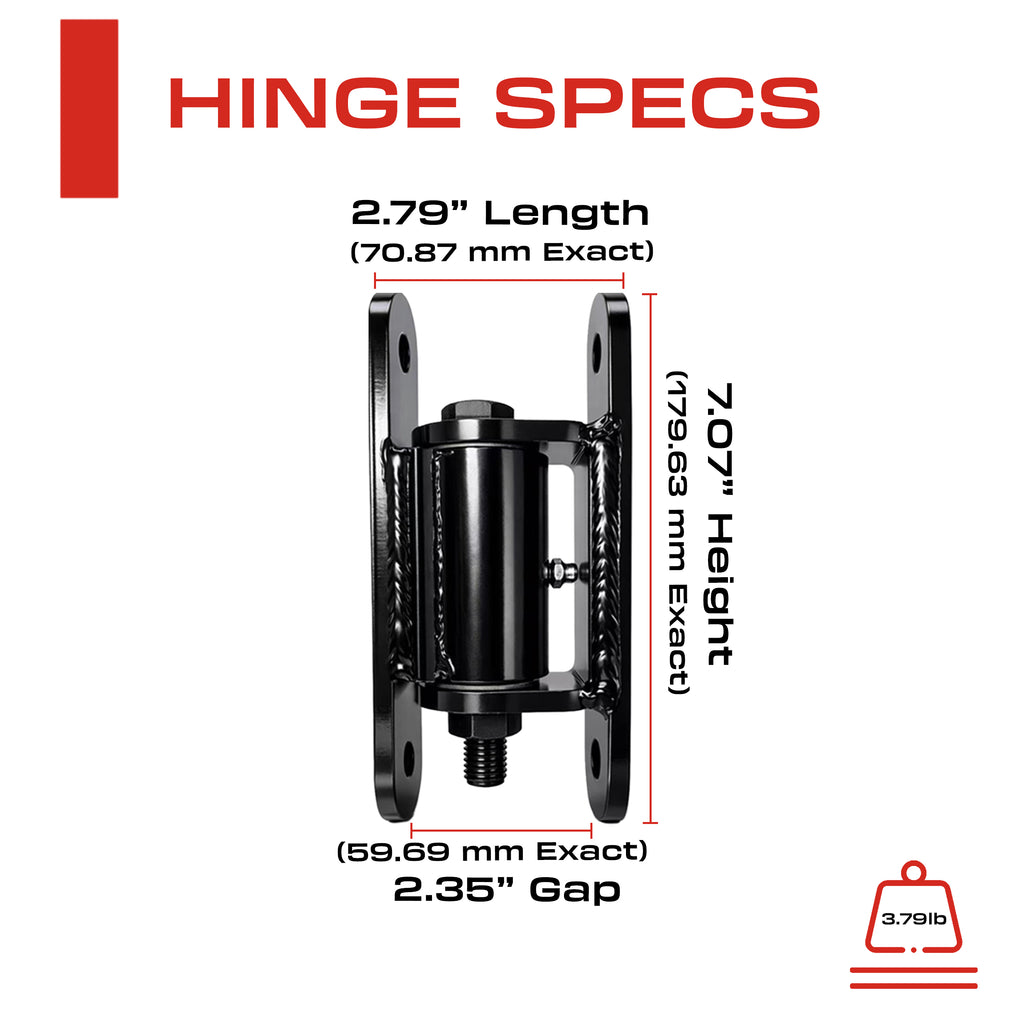

• Total Height: 7.07" (179.63 mm)
• Load Capacity: 1,100 lbs (per set of two hinges)
• Mounting Plate Size: 2.79" L x 1.49" W
• Mounting Plate Thickness: 0.24" (6.06 mm)

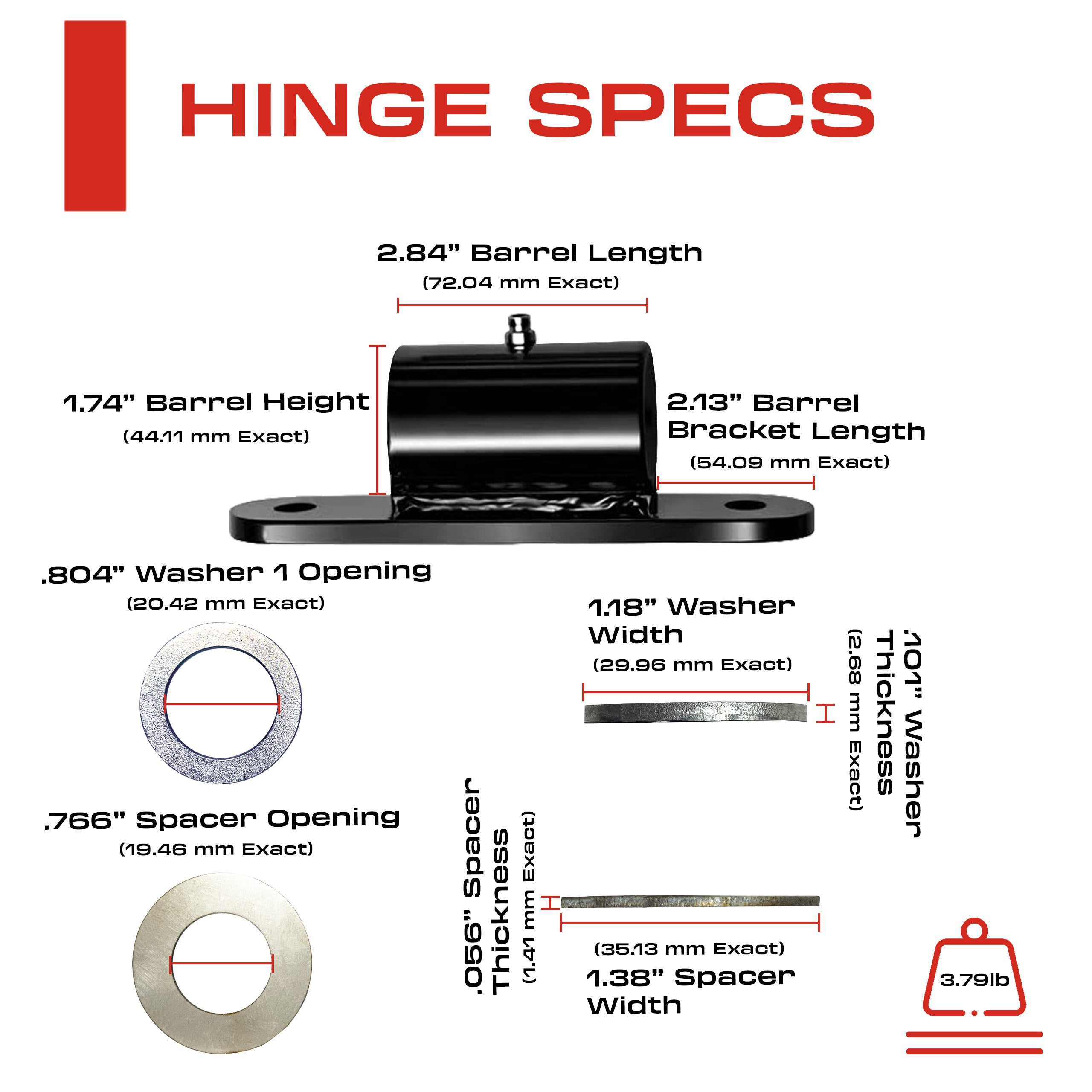

• Barrel Length: 2.84" (72.04 mm)
• Barrel Height: 1.74" (44.11 mm)
• Gate Gap: 2.35" (59.69 mm)
• Bolt Hole Size: 0.52" (fits standard 1/2 in bolts)
• Grease Fitting: 1/4" (6.67 mm) zerk
• Weight: 3.79 lbs per hinge
• Swing Range: 180°
• Installation: Bolt-On or Weld-On
• Mounting Hardware: Not Included
Ideal for wood or metal gates, driveway gates, ranch and farm gates, security fencing, and commercial or industrial gate systems.
